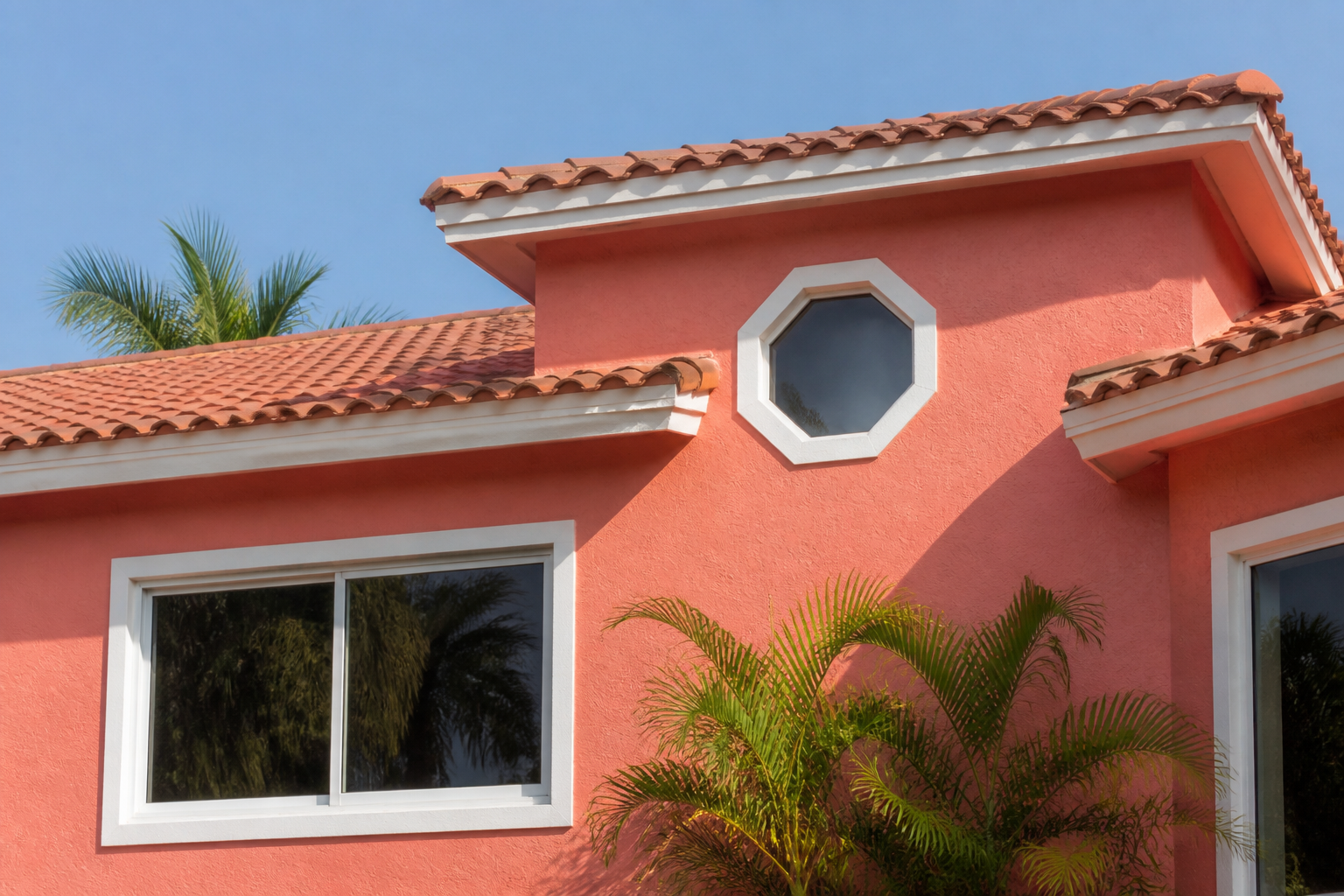

Geometric and shaped windows are the architectural punctuation marks that make a Tampa home stand out: a triangular transom above a front door in Hyde Park, an octagonal feature window in a Seminole Heights craftsman, a curved-top accent in a Davis Islands contemporary. The challenge in Florida has always been getting those dramatic shapes without giving up hurricane protection. Winslow Windows & Doors solves exactly that. We custom-fabricate triangular, hexagonal, octagonal, and curved impact-glass configurations to your opening, then install them to hold their Miami-Dade NOA-rated performance in real Tampa wind conditions. Call (386) 559-6999 to talk through a shape you’ve been sketching.

Call (386) 559-6999

Product Overview - Geometric & Shaped Windows

Custom-shaped windows are not a stock shelf item anywhere. In hurricane-prone construction, they’re an engineered product, and that’s the critical difference. A triangle or hexagon puts diagonal loads on the frame at every corner, and when wind pressure hits a curved radius, the force distributes differently than it does on a rectangle. Big-box stock profiles simply don’t address this. Our geometric impact windows are built with aluminum or vinyl frames that are custom-fabricated to the exact angles and arcs of your rough opening, then glazed with laminated impact glass so the full assembly carries a design pressure rating matched to your specific wind zone, up to +/-100 PSF, never higher, because overselling a rating is as wrong as underselling one.

Where do these shapes actually get used in Tampa? Think front entry transoms in Palma Ceia, radius-top windows over garden tubs in Westchase, octagonal vents in gable ends in Carrollwood, half-rounds over sliding glass doors in Apollo Beach. The appeal is architectural detail without sacrificing the wind-zone protection your insurance carrier and building department expect. Every configuration is custom-fabricated to your opening, meaning the unit arrives at your job site built for that exact hole in that exact wall, not trimmed and shimmed into a “close enough” stock size. That’s how you get a true NOA-rated system rather than a window that just looks correct from the curb.

Technical Specifications

• Frame materials: Aluminum or vinyl, selected per configuration and exposure. Aluminum carries larger spans and slimmer sightlines for bigger geometric shapes; vinyl brings thermal performance and cost efficiency to smaller accents.
• Maximum size: Custom-fabricated to order. There is no stock-size limitation because every window is built to your measured opening.
• Glass options: Laminated impact glass with PVB interlayer, Low-E insulated glass, tinted glass, clear glass.
• Finish options: White, almond, bronze, black, and tan, matched across interior and exterior where the frame line shows.
• Design pressure: Matched to your wind zone, up to +/-100 PSF. Never higher, because higher than your zone is a number that means nothing and costs money.
• Compliance documentation: Miami-Dade NOA and Florida Product Approval numbers available per configuration, engineered to FBC HVHZ requirements. Verify the applicable approval numbers on your specific quote.

Hurricane & Compliance Performance

Laminated Impact Glass
Two panes of glass bonded around a PVB interlayer. When impact occurs, the glass fractures but the interlayer holds the broken pieces in the frame, keeping the building envelope sealed and keeping wind-driven debris and pressure out of your Tampa home.

Miami-Dade NOA / Florida Product Approval
Every geometric configuration carries a Notice of Acceptance and Florida Product Approval number when submitted for permit. These are issued per configuration, not for the product line as a blanket statement. Your quote lists the exact numbers for your specific shape and size.

FBC / HVHZ Compliance
Engineered to Florida Building Code High-Velocity Hurricane Zone requirements. Tampa sits in a HVHZ jurisdiction, which means the product submittal your permit reviewer asks for has to line up with what’s actually installed. Ours does.

TAS 201 / 202 / 203 Testing Context
TAS 201 covers large-missile impact testing. TAS 202 covers cyclic wind-pressure loading, which simulates the repeated gusts that fatigue a frame during a storm. TAS 203 covers forced-entry resistance. This is the test protocol family HVHZ-rated products earn their approvals under.

Design Pressure for Your Wind Zone
Design pressures are matched to your wind zone, up to +/-100 PSF, never higher. A window in South Tampa near the water carries a different requirement than one in Lutz, and writing a higher number on the spec sheet doesn’t make the window better. It makes the spec dishonest. We match the window to the location.

Energy Performance
Low-E and insulated glass options are available for these shapes, which matters in Tampa where the air conditioner runs most of the year. A west-facing octagonal window in West Tampa behaves very differently than a north-facing one in New Tampa, and the glass package should reflect that.

Color & Glass Options

Five finish colors cover most of what Tampa architecture asks for. White and almond sit comfortably on coastal and Florida-Mediterranean homes across South Tampa and St. Pete-style builds; they keep the window frame quiet against stucco. Bronze and black frames give you a stronger definition line, which reads well on mid-century moderns in Bayshore Beautiful or on more contemporary elevations in the Channel District. Tan is the bridge color for older Florida ranches where a dark frame would feel too heavy and a white frame too sharp.

Glass choice should follow the room, not the sales brochure. Clear laminated impact glass gets used where the view is the point: a circle-top over a slider facing Tampa Bay. Tinted glass cuts glare in rooms that catch afternoon sun. Low-E insulated glass adds thermal performance for west-facing walls and energy-conscious homeowners; it’s the package we recommend most often for fixed geometric windows that catch direct sun. Your estimator can walk you through what each package does in your specific window location rather than making a generic recommendation.

Installation by Winslow Windows & Doors in Tampa

A geometric impact window is only as good as its installation, because a NOA-rated product installed badly fails exactly where the approval doesn’t cover: at the perimeter. That’s why our installation practice starts with a pre-install inspection of the rough opening before anything gets ordered, checking the framing dimensions against the template in multiple directions. Geometric openings are unforgiving; if the rough opening is a half-inch out of square, the window goes in fighting itself, and that stress shows up in the first real wind event.

Our crews set every unit level, plumb, and square using shims at the corners and intermediate points, then secure it per the manufacturer’s approved anchoring schedule for that specific configuration. We seal the perimeter with AAMA 812 low-expansion foam, which fills the shim spaces and the frame-to-opening gap without bowing the frame or the jamb. Our installation practice follows AAMA 2400/2410 standards for the full perimeter: flashing, sealant, and fastener coverage that works as a system rather than as separate steps.

Coastal exposure is a real variable in Tampa. A shaped window on a Bayshore Boulevard high-rise balcony wall faces different water intrusion pressure than one in a Temple Terrace subdivision interior wall. We account for that in the flashing detail and the sealant selection. And if your municipality requires product approval submittals before the permit is issued, we provide the configuration-specific NOA and Florida Product Approval documentation so the review doesn’t stall.

Improper installation compromises the NOA-rated system, no matter how good the window itself is. The cheapest bid on a shaped window is usually the one that skips a step in the flashing or uses a one-size-fits-all sealant detail. A geometric window in Tampa should be installed by a crew that has done this specific work before, because the learning curve is expensive when it’s your wall that leaks.

Frequently Asked Questions - Geometric & Shaped Windows

Get a Quote - Geometric & Shaped Windows in Tampa

If you’ve been drawing a half-round transom on a napkin or staring at a blank gable end in your Tampa home, let’s put real numbers on it. We’ll field-measure the opening, spec the shape, grade, and finish, and give you written line-item pricing. Call Winslow Windows & Doors at (386) 559-6999 to schedule a free on-site measurement.
